Home > Industrial Electric Hot Water Boiler >

Electric Heating Industrial Hot Water Boiler Electromechanical Separation

Product Categories
Zhangjiagang Wilford Thermal Co.,Ltd.
Contact Now

Electric Heating Industrial Hot Water Boiler Electromechanical Separation

  • 1
  • 2

Brand Name : WILFORD

Model Number : CWDR

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 15 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : 15-20 working days

Rated thermal power : 0.7-1.05MW

Total heating capacity : 600000-900000kcal

Input power : 720-1080KW

Input current : 1080-1620A

Dimension(L*W*H) : Depends

Weight : 1.65-1.87T

Contact Now

New Condition Electric Heating Hot Water Boiler For Water Sterilization

Product introduction

  • The use of electromechanical split installation is conducive to the progress of installation and post-maintenance work.

  • The design of the control cabinet adopts advanced technology, standard production, and is beautiful and beautiful.

  • With detailed grounding wiring, it greatly reduces the difficulty of boiler installation.

  • High-quality controller, configuration branch separate switching function, power indicator switch, etc., safe and reliable.

  • With a fully automatic control system, the operation is extremely simple and the safety is very high.


Parameter

Type CWDR0.7-95/70 CWDR1.05-95/70 CWDR1.4-95/70 CWDR2.1-95/70
Project Unit
Rated thermal power MW 0.7 1.05 1.4 2.1
Total heating capacity 104kcal 60 90 120 180
Rated working pressure MPa Ordinary Pressure
Input Power KW 720 1080 1440 2160
Input current A 1080 1620 2160 3240
Rated Voltage V 3N AC 50HZ 380V
Power×Group KW×P 36×20 36×30 36×40 36×60
Water inlet diameter DN 100 80×2 80×2 150
Water outlet diameter DN 100 100 100 150
Blowoff valve diameter DN 50 50 50 50
Overall size Length mm 2500 2750 3100 3500
Width mm 1350 1500 1750 1960
Height mm 1700 2050 2200 2350
Weight kg 1650 1870 2500 3960


Advantage

1 . Electromechanical separation


2 . Electric heating element step by step cutting


3 . The electric heating tube is of good quality


4 . High performance controller


5 . Automatic water supply, automatic alarm, leakage protection, etc.


Product picture

Electric Heating Industrial Hot Water Boiler Electromechanical Separation

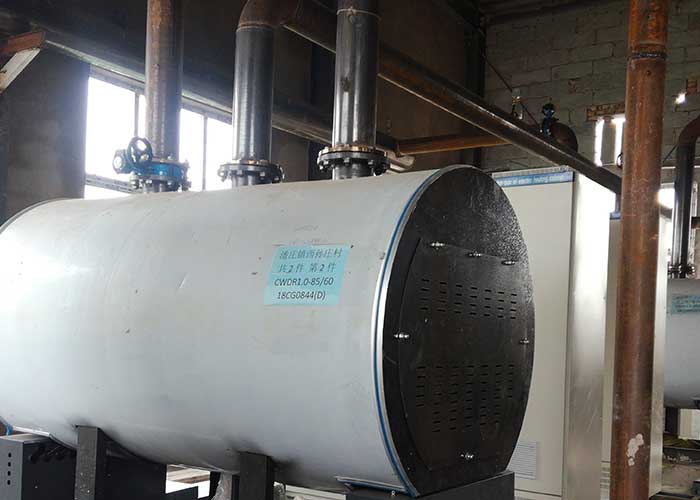

Project case diagram

Electric Heating Industrial Hot Water Boiler Electromechanical Separation
